DL001 Datasheet - AMI

DL001 - CMOS Gate Array

DL00x is a family of transparent, unbuffered D latch with active low gate transparency and without SET or RESET.

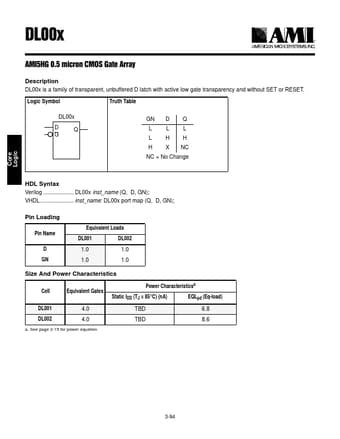

Logic Symbol Truth Table DL00x DQ G GN D Q LLL L HH H X NC NC = No Change HDL Syntax Verilog DL00x inst_name (Q, D, GN); VHDL inst_name: DL00x port map (Q, D, GN); Pin Loading Pin

DL001-AMI.pdf

Preview of DL001 PDF
DL001 Datasheet Preview Page 2

Datasheet Details

Part number:

DL001

Manufacturer:

AMI

File Size:

27.46 KB

Description:

Cmos gate array.
