NA53

CMOS Gate Array

NA53 General Description

NA5x is a family of 5-input gates which perform the logical NAND function. Logic Symbol NA5x A B C D E A B C D E Q Q Truth Table ABCDEQ L XXXXH X L XXXH XX L XXH XXX L XH XXXXLH HHHHH L Core Logic HDL Syntax Verilog NA5x inst_name (Q, A, B, C, D, E); VHDL inst_name: NA5x port map (Q, A, B, C, .

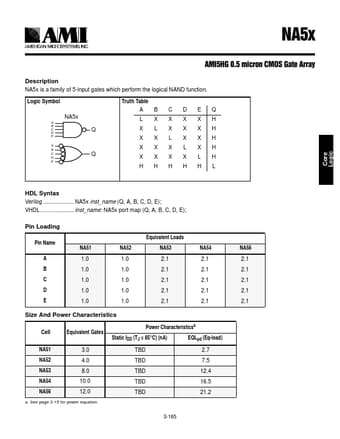

NA53 Datasheet (27.32 KB)

Preview of NA53 PDF

Datasheet Details

Part number:

NA53

Manufacturer:

AMI

File Size:

27.32 KB

Description:

Cmos gate array.
