NA56, NA51 Datasheet - AMI

NA56 CMOS Gate Array

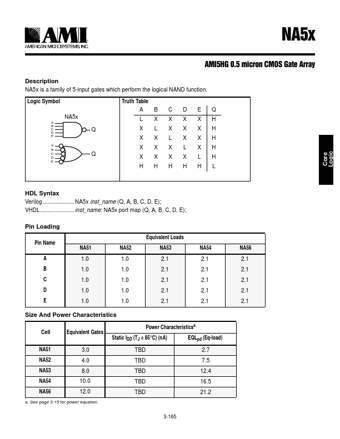

NA5x is a family of 5-input gates which perform the logical NAND function. Logic Symbol NA5x A B C D E A B C D E Q Q Truth Table ABCDEQ L XXXXH X L XXXH XX L XXH XXX L XH XXXXLH HHHHH L Core Logic HDL Syntax Verilog NA5x inst_name (Q, A, B, C, D, E); VHDL inst_name: NA5x port map (Q, A, B, C, .

NA51-AMI.pdf

NA56 Datasheet Preview — This datasheet PDF includes multiple part numbers: NA56, NA51. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NA56, NA51

Manufacturer:

AMI

File Size:

27.32 KB

Description:

Cmos gate array.

Note:

This datasheet PDF includes multiple part numbers: NA56, NA51.
Please refer to the document for exact specifications by model.
