ODTXXE04

CMOS Gate Array

ODTXXE04 Datasheet (31.86 KB)

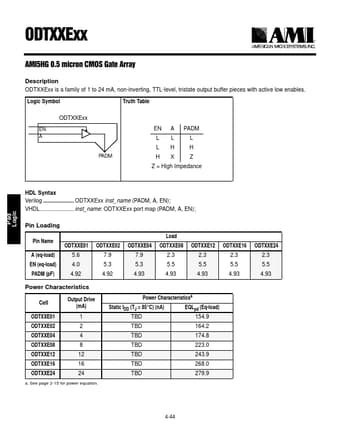

Preview of ODTXXE04 PDF Datasheet

Datasheet Details

Part number:

ODTXXE04

Manufacturer:

AMI

File Size:

31.86 KB

Description:

Cmos gate array

ODTXXE04 General Description

ODTXXExx is a family of 1 to 24 mA, non-inverting, TTL-level, tristate output buffer pieces with active low enables. Logic Symbol Truth Table ODTXXExx EN A PADM EN A PADM LL L LH H HX Z Z = High Impedance HDL Syntax Verilog ODTXXExx inst_name (PADM, A, EN); VHDL inst_name: ODTXXExx port.
