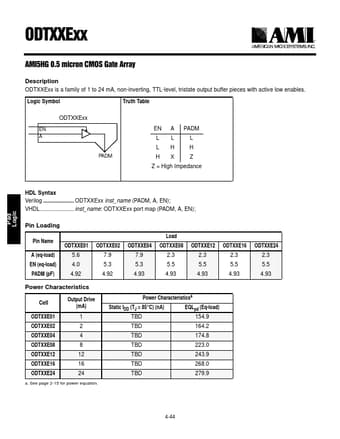

ODTXXExx is a family of 1 to 24 mA, non-inverting, TTL-level, tristate output buffer pieces with active low enables. Logic Symbol Truth Table ODTXXExx EN A PADM EN A PADM LL L LH H HX Z Z = High Impedance HDL Syntax Verilog ODTXXExx inst_name (PADM, A, EN); VHDL inst_name: ODTXXExx port.
