ODTXXE08

CMOS Gate Array

ODTXXE08 Datasheet (31.86 KB)

Preview of ODTXXE08 PDF Datasheet

Datasheet Details

Part number:

ODTXXE08

Manufacturer:

AMI

File Size:

31.86 KB

Description:

Cmos gate array

ODTXXE08 General Description

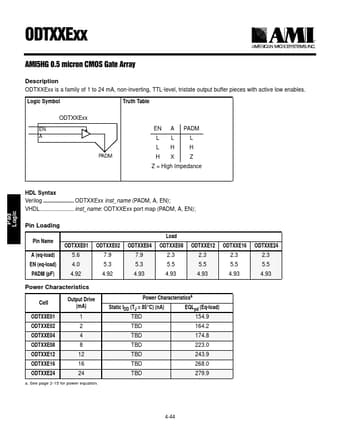

ODTXXExx is a family of 1 to 24 mA, non-inverting, TTL-level, tristate output buffer pieces with active low enables. Logic Symbol Truth Table ODTXXExx EN A PADM EN A PADM LL L LH H HX Z Z = High Impedance HDL Syntax Verilog ODTXXExx inst_name (PADM, A, EN); VHDL inst_name: ODTXXExx port.
