A25L05P - (A25LxxP) Serial Flash Memory

Datasheet Summary

Description

The A25L20P/A25L10P/A25L05P are 2M/1M/512 bit Serial Flash Memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus.

The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction.

Features

  • 2Mbit / 1Mbit / 512Kbit of Flash Memory.
  • Flexible Sector Architecture - 25L20P: (4/4/8/16/32)KB/64x3 KB - 25L10P: (4/4/8/16/32)KB/64x1KB - 25L05P: (4/4/8/16/32)KB.
  • Bulk Erase (typical) - 25L20P (2M) in 6s - A25L10P (1M) in 4s - A25L05P (512K) in 3s.
  • Sector Erase (512 Kbit) in 1s (typical).
  • Page Program (up to 256 Bytes) in 3ms (typical).
  • 2.7 to 3.6V Single Supply Voltage.
  • SPI Bus Compatible Serial Interface.
  • 85MHz Clock Rat.

📥 Download Datasheet

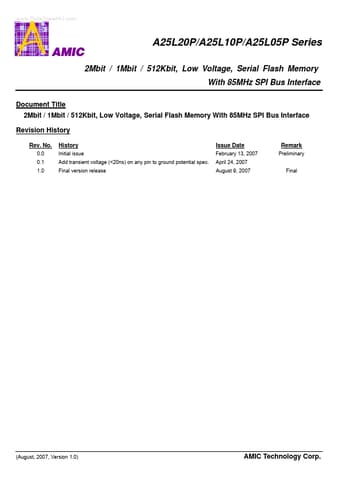

Datasheet preview – A25L05P

Datasheet Details

Part number A25L05P
Manufacturer AMIC Technology
File Size 565.77 KB
Description (A25LxxP) Serial Flash Memory
Datasheet download datasheet A25L05P Datasheet
