A25L16P

Serial Flash Memory

A25L16P Datasheet (724.87 KB)

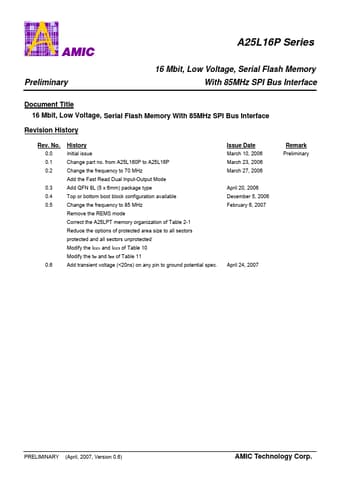

Preview of A25L16P PDF

Datasheet Details

Part number:

A25L16P

Manufacturer:

AMIC Technology

File Size:

724.87 KB

Description:

Serial flash memory.
A25L16P Series 16 Mbit, Low Voltage, Serial Flash Memory Preliminary Document Title 16 Mbit, Low Voltage, Serial Flash Memory With 85MHz SPI Bus Inter.

A25L16P Features

* 16 Mbit of Flash Memory

* Flexible Sector Architecture (4/4/8/16/32)KB/64x31 KB

* Bulk Erase (16 Mbit) in 20s (typical)

* Sector Erase (512 Kbit) in 1s (typical)

* Page Program (up to 256 Bytes) in 1.5ms (typical)

* 2.7 to 3.6V Single Supply Voltage

A25L16P General Description

The A25L16P is a 16 Mb it (2M x 8) S erial F lash Memor y, with adva nced write prot ection mecha nisms, accessed b y a high speed SPI-compatible bus. The memor y can be pro grammed 1 to 256 b ytes at a time, using the Page Program instruction. The memory is organized as 32 sectors, each containing .
