A25L20P

(A25LxxP) Serial Flash Memory

A25L20P Datasheet (569.93 KB)

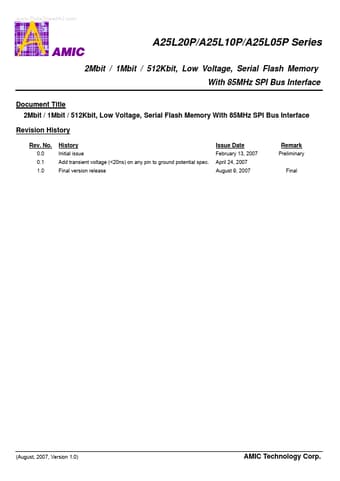

Preview of A25L20P PDF

Datasheet Details

Part number:

A25L20P

Manufacturer:

AMIC Technology

File Size:

569.93 KB

Description:

(a25lxxp) serial flash memory.
www.DataSheet4U.com A25L20P/A25L10P/A25L05P Series 2Mbit / 1Mbit / 512Kbit, Low Voltage, Serial Flash Memory With 85MHz SPI Bus Interface Document Ti.

A25L20P Features

* 2Mbit / 1Mbit / 512Kbit of Flash Memory

* Flexible Sector Architecture - 25L20P: (4/4/8/16/32)KB/64x3 KB - 25L10P: (4/4/8/16/32)KB/64x1KB - 25L05P: (4/4/8/16/32)KB

* Bulk Erase (typical) - 25L20P (2M) in 6s - A25L10P (1M) in 4s - A25L05P (512K) in 3s

* Sector Erase

A25L20P General Description

The A25L20P/A25L10P/A25L05P are 2M/1M/512 bit Serial Flash Memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus. The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction. The memory is organized as 4/2/1 sectors, each contain.
