A25L40P - Serial Flash Memory

Datasheet Summary

Description

The A25L40P is a 4 Mbit (512K x 8) Serial Flash Memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus.

The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction.

The memory is organized as 8 sectors, each containing 256 pages.

Features

  • 4 Mbit of Flash Memory Flexible Sector Architecture (4/4/8/16/32)KB/64x7 KB Bulk Erase (4 Mbit) in 6s (typical) Sector Erase (512 Kbit) in 1s (typical) Page Program (up to 256 Bytes) in 3ms (typical) 2.7 to 3.6V Single Supply Voltage SPI Bus Compatible Serial Interface 85MHz Clock Rate (maximum) Deep Power-down Mode 1µA (typical) Top or Bottom boot block configuration available Electronic Signatures - JEDEC Standard two-Byte Signature (2013h) - RES Instruction, One-Byte, Signature (12h), for bac.

📥 Download Datasheet

Datasheet preview – A25L40P

Datasheet Details

Part number A25L40P
Manufacturer AMIC Technology
File Size 499.72 KB
Description Serial Flash Memory
Datasheet download datasheet A25L40P Datasheet
Additional preview pages of the A25L40P datasheet.

📁 Similar Datasheet

  • A25L010 - (A25L010 - A25L512) Serial Flash Memory (AMIC)
  • A25L020 - (A25L010 - A25L512) Serial Flash Memory (AMIC)
  • A25L020C - 2Mbit 3V Serial Flash Memory (AMIC)
  • A25L032 - Dual-I/O Serial Flash Memory (AMIC)
  • A25L080 - 8Mbit Low Voltage Serial Flash Memory (AMIC)
  • A25L512 - (A25L010 - A25L512) Serial Flash Memory (AMIC)
  • A25L512A - Serial Flash Memory (AMIC)
  • A25LQ080 - Dual/Quad-I/O Serial Flash Memory (AMIC)
  • A25LQ16 - Dual/Quad-I/O Serial Flash Memory (AMIC)
  • A25LQ32A - Dual/Quad-I/O Serial Flash Memory (AMIC)
Other Datasheets by AMIC Technology
  • A25L016 - 16Mbit Low Voltage Serial Flash Memory
  • A25L05P - (A25LxxP) Serial Flash Memory
  • A25L10P - (A25LxxP) Serial Flash Memory
  • A25L16P - Serial Flash Memory
  • A25L20P - (A25LxxP) Serial Flash Memory
  • A25L80P - Serial Flash Memory

Full PDF Text Transcription

Click to expand full text

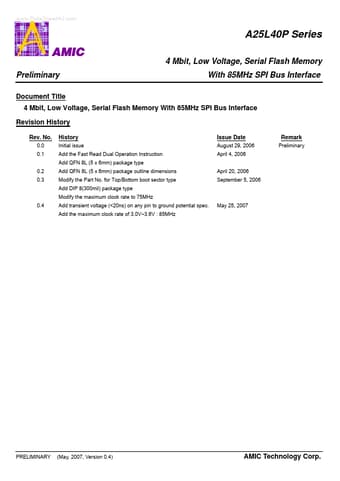

www.DataSheet4U.com A25L40P Series 4 Mbit, Low Voltage, Serial Flash Memory Preliminary Document Title 4 Mbit, Low Voltage, Serial Flash Memory With 85MHz SPI Bus Interface Revision History Rev. No. 0.0 0.1 0.2 0.3 With 85MHz SPI Bus Interface History Initial issue Add the Fast Read Dual Operation Instruction Add QFN 8L (5 x 6mm) package type Add QFN 8L (5 x 6mm) package outline dimensions Modify the Part No. for Top/Bottom boot sector type Add DIP 8(300mil) package type Modify the maximum clock rate to 75MHz Issue Date August 29, 2006 April 4, 2006 April 20, 2006 September 5, 2006 Remark Preliminary 0.4 Add transient voltage (<20ns) on any pin to ground potential spec. Add the maximum clock rate of 3.0V~3.6V : 85MHz May 25, 2007 PRELIMINARY (May, 2007, Version 0.
