A62L256 Datasheet - AMIC Technology

A62L256 32K x 8 BIT LOW VOLTAGE CMOS SRAM

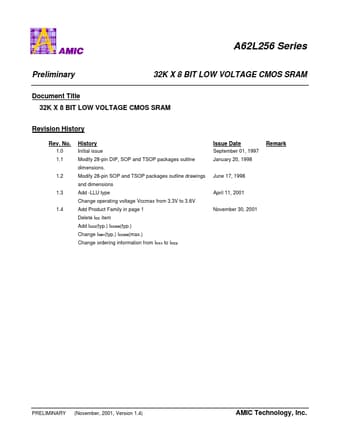

A62L256 Series Preliminary 32K X 8 BIT LOW VOLTAGE CMOS SRAM Document Title 32K X 8 BIT LOW VOLTAGE CMOS SRAM Revision History Rev. No. 1.0 1.1 1.2 1.3 1.4 History Initial issue Modify 28-pin DIP, SOP and TSOP packages outline dimensions. Modify 28-pin SOP and TSOP packages outline drawings and dimensions Add -LLU type Change operating voltage Vccmax from 3.3V to 3.6V Add Product Family in page 1 Delete ICC item Add ICC2(typ.) ICCDR(typ.) Change ISB1(typ.) ICCDR(max.) Change ordering infor.

A62L256 Features

* n External Operating Voltage: 2.7V to 3.6V n Access times: 55ns (max.): for VCC = 3.0V to 3.6V 70ns (max.): for VCC = 2.7V to 3.6V n Current: Operating (ICC1): -55 series 18mA (typ.) -70 series 12mA (typ.) Standby (ISB1): 0.05µA (ty

A62L256_AMICTechnology.pdf

Preview of A62L256 PDF
A62L256 Datasheet Preview Page 2 A62L256 Datasheet Preview Page 3

Datasheet Details

Part number:

A62L256

Manufacturer:

AMIC Technology

File Size:

143.79 KB

Description:

32k x 8 bit low voltage cmos sram.
