A627308, A62 Datasheet - AMIC Technology

A627308 128K X 8 BIT CMOS SRAM

The A627308 is a low operating current 1048,576-bit static random access memory organized as 131,072 words by 8 bits and operates on a power supply voltage from 4.5V to 5.5V. Inputs and three-state outputs are TTL compatible and allow for direct interfacing with common system bus structures. Two chi.

A627308 Features

* n Power supply range: 4.5V to 5.5V n Access times: 70/100 ns (max.) n Current: Operating: 70mA (max.) Standby: 15µA (max.) n Full static operation, no clock or refreshing required n All inputs and outputs are directly TTL compatible n Common I/O using three-state output n Output enable and two chip

A62-7308.pdf

This datasheet PDF includes multiple part numbers: A627308, A62. Please refer to the document for exact specifications by model.

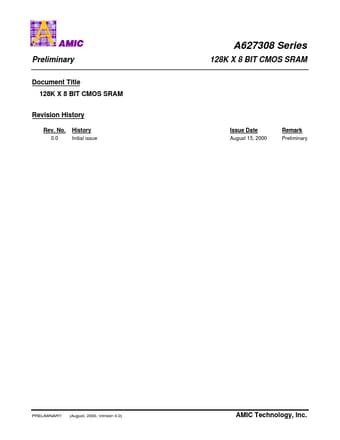

A627308 Datasheet Preview Page 2 A627308 Datasheet Preview Page 3

Datasheet Details

Part number:

A627308, A62

Manufacturer:

AMIC Technology

File Size:

231.36 KB

Description:

128k x 8 bit cmos sram.

Note:

This datasheet PDF includes multiple part numbers: A627308, A62.
Please refer to the document for exact specifications by model.
