A6275

8-Bit Serial Input Constant-Current Latched LED Driver

A6275 Features

* ▪ Up to 90 mA constant-current outputs ▪ Undervoltage lockout ▪ Low-power CMOS logic and latches ▪ High data-input rate ▪ Pin-compatible with TB62705CP Packages 16-pin DIP (A package) Not to scale 16-pin SOICW (LW package) Description TheA6275 is specifically designed for LED display applications

A6275 General Description

TheA6275 is specifically designed for LED display applications. Each BiCMOS device includes an 8-bit CMOS shift register, accompanying data latches, and eight NPN constant-current sink drivers. The CMOS shift register and latches allow direct interfacing with microprocessor-based systems. With a 5 V.

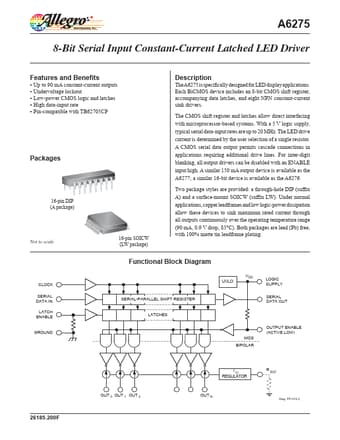

A6275 Datasheet (381.46 KB)

Preview of A6275 PDF

Datasheet Details

Part number:

A6275

Manufacturer:

Allegro

File Size:

381.46 KB

Description:

8-bit serial input constant-current latched led driver.
