A6277

8-Bit Serial Input Constant-Current Latched LED Driver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Allegro MicroSystems LLC A6277ELWTR-T IC LED DRVR LINEAR 120MA 20SOIC DigiKey 0 0
$0

A6277 Datasheet (364.93 KB)

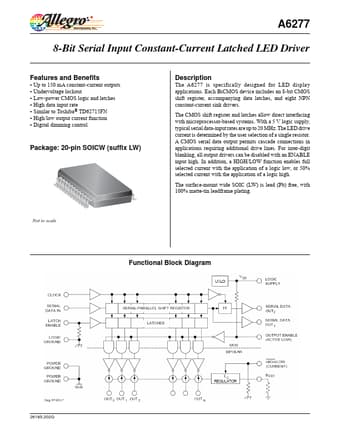

Preview of A6277 PDF Datasheet

Datasheet Details

Part number:

A6277

Manufacturer:

Allegro

File Size:

364.93 KB

Description:

8-bit serial input constant-current latched led driver

A6277 Features

* ▪ Up to 150 mA constant-current outputs ▪ Undervoltage lockout ▪ Low-power CMOS logic and latches ▪ High data input rate ▪ Similar to Toshiba® TD62715FN ▪ High/low output current function ▪ Digital dimming control Package: 20-pin SOICW (suffix LW) Description The A6277 is specifically designed for

A6277 General Description

The A6277 is specifically designed for LED display applications. Each BiCMOS device includes an 8-bit CMOS shift register, accompanying data latches, and eight NPN constant-current sink drivers. The CMOS shift register and latches allow direct interfacing with microprocessor-based systems. With a 5 .
