ACFT4A2G900E

Filter

ACFT4A2G900E Features

* Excellent noise reduction without signal loss

* Small size & low profile(0.85 X 0.65 X 0.40mm)

* Ceramic multilayer type SMD component

* High reliability

* RoHS compliance Applications

* Common Mode Noise reduction at high-speed differential transmission lines 1. Model Des

ACFT4A2G900E General Description

ACF T 4A 2 G 900 E (1) (2) (3) (4) (5) (6) (7) (1) Series name (2) Material code (3) Chip size : “4A”

* 0.85 X 0.65 X 0.40mm (4) Number of lines : “2”

* 2 lines (5) Characteristics : “G”

* High speed differential transmission( for Gbps) (6) Impedance : “900”

* 90Ω, “6.

ACFT4A2G900E Datasheet (394.53 KB)

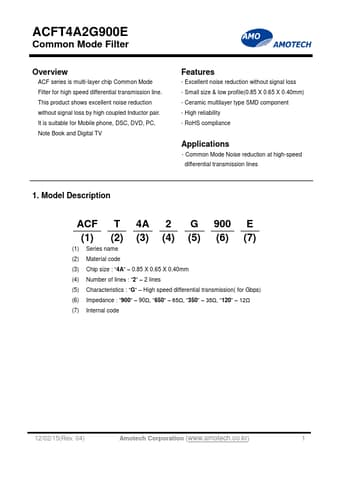

Preview of ACFT4A2G900E PDF

Datasheet Details

Part number:

ACFT4A2G900E

Manufacturer:

AMOTECH

File Size:

394.53 KB

Description:

Filter.
ACFT4A2G900E Common Mode Filter Overview ACF series is multi-layer chip Common Mode Filter for high speed differential transmission line. This produc.
