ACA2404S7P2, ACA Datasheet - ANADIGICS Inc

ACA2404S7P2 High Output Power Doubler Line Amplifier

The ACA2404 is a highly linear, high output power, monolithic GaAs RF amplifier that has been developed to replace standard CATV hybrid amplifiers, in new designs. Offered in a convenient surface mount package, the MMIC consists of two pairs of parallel amplifiers that are optimized for exceptionall.

ACA2404S7P2 Features

* 21.5 dB Gain Characterized at +58 dBmV Output Very Low Distortion Excellent 75 Ω Input and Output Match Stable with High VSWR Load Conditions Monolithic Design for Consistent Performance Part-to-Part Surface Mount Package Compatib

ACA-2404.pdf

This datasheet PDF includes multiple part numbers: ACA2404S7P2, ACA. Please refer to the document for exact specifications by model.

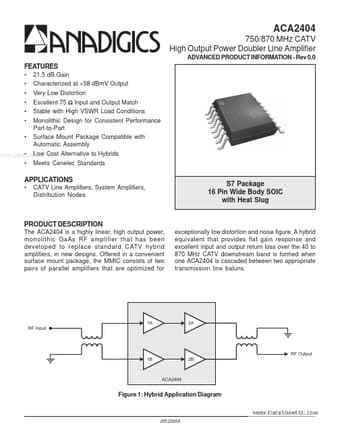

ACA2404S7P2 Datasheet Preview Page 2 ACA2404S7P2 Datasheet Preview Page 3

Datasheet Details

Part number:

ACA2404S7P2, ACA

Manufacturer:

ANADIGICS Inc

File Size:

311.02 KB

Description:

High output power doubler line amplifier.

Note:

This datasheet PDF includes multiple part numbers: ACA2404S7P2, ACA.
Please refer to the document for exact specifications by model.
