ACA2407, ACA Datasheet - ANADIGICS Inc

ACA2407 Power Doubler Line Amplifier

The ACA2407 is a highly linear, monolithic GaAs RF amplifier that has been developed to replace, in new designs, standard CATV hybrid amplifiers. Offered in a convenient surface mount package, the MMIC consists of two pairs of parallel amplifiers that are optimized for exceptionally low distortion a.

ACA2407 Features

* 21.5 dB Gain Very Low Distortion Excellent 75 Ω Input and Output Match Stable with High VSWR Load Conditions Monolithic Design for Consistent Performance Part-to-Part Low DC Power Consumption Surface Mount Pack

ACA-2407.pdf

This datasheet PDF includes multiple part numbers: ACA2407, ACA. Please refer to the document for exact specifications by model.

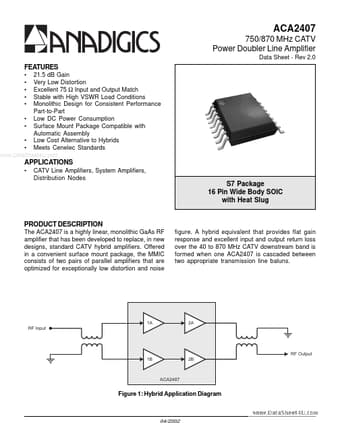

ACA2407 Datasheet Preview Page 2 ACA2407 Datasheet Preview Page 3

Datasheet Details

Part number:

ACA2407, ACA

Manufacturer:

ANADIGICS Inc

File Size:

238.53 KB

Description:

Power doubler line amplifier.

Note:

This datasheet PDF includes multiple part numbers: ACA2407, ACA.
Please refer to the document for exact specifications by model.
