ACA2402E Datasheet - ANADIGICS

750/870 MHz CATV Push-Pull Line Amplifier

ACA2402E Features

* 22 dB Gain Very Low Distortion Excellent 75 Ω Input and Output Match Stable with High VSWR Load Conditions Monolithic Design for Consistent Performance Part-to-Part Low DC Power Consumption Surface Mount Package Compatible with Au

ACA2402E General Description

The ACA2402E is a highly linear, monolithic GaAs RF amplifier that has been developed to replace, in new designs, standard CATV hybrid amplifiers. Offered in a convenient surface mount package, the MMIC consists of two pairs of parallel amplifiers that are optimized for exceptionally low distortion .

ACA2402E Datasheet (233.50 KB)

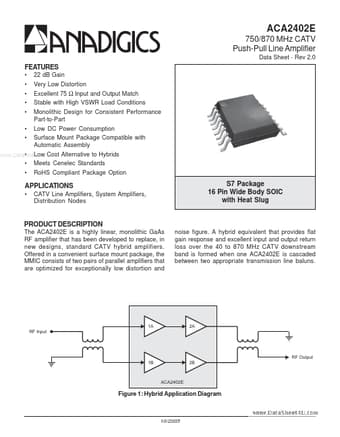

ACA2402E Datasheet Preview — Preview of ACA2402E PDF

Datasheet Details

Part number:

ACA2402E

Manufacturer:

ANADIGICS

File Size:

233.50 KB

Description:

750/870 mhz catv push-pull line amplifier.
