Part number: ACA2604
Manufacturer: ANADIGICS
File Size: 705.73KB
Download: 📄 Datasheet
Description: Fiber-to-the-Home RF Amplifier
Part number: ACA2604
Manufacturer: ANADIGICS
File Size: 705.73KB
Download: 📄 Datasheet
Description: Fiber-to-the-Home RF Amplifier

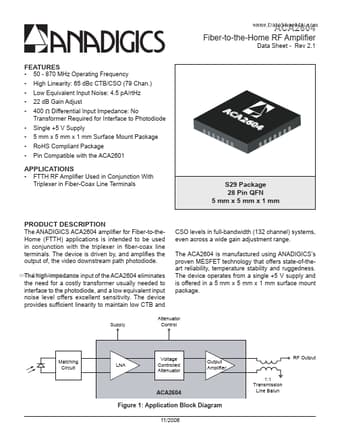

ACA2604
Data Sheet - Rev 2.1
* 50 - 870 MHz Operating Frequency
* High Linearity: 65 dBc CTB/CSO (79 Chan.)
* Low Equivalent Input Noise: 4.5 pA/rtHz <.
* FTTH RF Amplifier Used in Conjunction With Triplexer in Fiber-Coax Line Terminals
S29 Package 28 Pin QFN 5 mm x.
The ANADIGICS ACA2604 amplifier for Fiber-to-theHome (FTTH) applications is intended to be used in conjunction with the triplexer in fiber-coax line terminals. The device is driven by, and amplifies the output of, the video downstream path photodiod.
