AGB3300

50OHM HIGH LINEARITY LOW NOISE WIDEBAND GAIN BLOCK

AGB3300 Features

* 250-3000 MHz Frequency Range +43 dBm Output IP3 Low Noise Figure: 2 dB at 900 MHz 14.5 dB Gain at 900 MHz (matched) +22 dBm P1dB SOT-89 Package Single +5V Supply Low Power: 700 mW Case Temperature: -40 to +85 oC Data Sheet - Rev 2.1 APPLICATIONS

AGB3300 General Description

The AGB3300 is one of a series of GaAs MESFET amplifiers designed for use in applications requiring high linearity, low noise and low distortion. With a high output IP3, low noise figure and wide band operation, the AGB3300 is ideal for 50 W wireless infrastructure applications such as Cellular Ba.

AGB3300 Datasheet (281.25 KB)

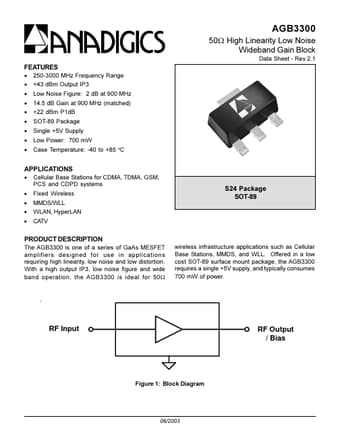

Preview of AGB3300 PDF

Datasheet Details

Part number:

AGB3300

Manufacturer:

ANADIGICS

File Size:

281.25 KB

Description:

50ohm high linearity low noise wideband gain block.
