AGB3306

50W High Linearity Low Noise Wideband Gain Block

AGB3306 Features

* DC-7000 MHz Operation Bandwidth +27.5 dBm Output IP3 at 850 MHz 4.5 dB Noise Figure at 850 MHz 20.5 dB Gain at 850 MHz +14.5 dBm P1dB at 1950 MHz SOT-89 Package Single +5 V to +12 V Supply Case Temperature: -40 to +85 °C

AGB3306 General Description

The AGB3306 is one of a series of high performance InGaP HBT amplifiers designed for use in applications requiring high linearity, low noise and low distortion. No external matching components are needed for insertion into a 50Ω system. With a high output IP3, low noise figure and wide band operatio.

AGB3306 Datasheet (265.73 KB)

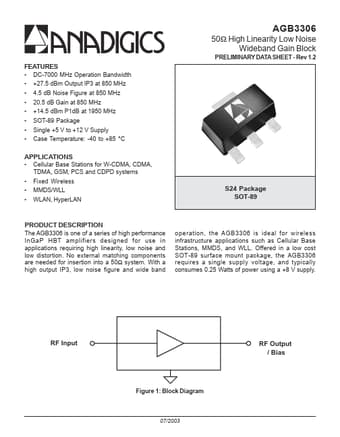

Preview of AGB3306 PDF

Datasheet Details

Part number:

AGB3306

Manufacturer:

ANADIGICS

File Size:

265.73 KB

Description:

50w high linearity low noise wideband gain block.
