AGB3302 Datasheet - ANADIGICS

AGB3302 - 50 ohm HGIH LINEARITY LOW NOISE WIDEBAND GAIN BLOCK

operation, the AGB3302 is ideal for wireless infrastructure applications such as Cellular Base Stations, MMDS, and WLL.

Offered in a low cost SOT-89 surface mount package, the AGB3302 requires a single supply voltage, and typically consumes 0.5 Watts of power using a +8 V supply.

RF Input RF Outp

AGB3302 Features

* • • • • • • • • DC-5300 MHz Operation Bandwidth +36 dBm Output IP3 4.5 dB Noise Figure at 850 MHz 16 dB Gain at 850 MHz +18 dBm P1dB SOT-89 Package Single +8 V to +12 V Supply Case Temperature: -40 to +85 °C APPLICATIONS • • • • Cellular Base Stations for W-CDMA, CDMA, TDMA, GSM, PCS and CDPD sy

AGB3302_ANADIGICS.pdf

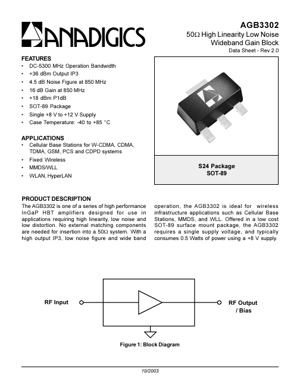

Preview of AGB3302 PDF
AGB3302 Datasheet Preview Page 2 AGB3302 Datasheet Preview Page 3

Datasheet Details

Part number:

AGB3302

Manufacturer:

ANADIGICS

File Size:

199.04 KB

Description:

50 ohm hgih linearity low noise wideband gain block.
