ADP3207 - 7-Bit Programmable Multiphase Mobile CPU Synchronous Buck Controller

ADP3207 Description

7-Bit Programmable Multiphase Mobile CPU Synchronous Buck Controller ADP3207 .
The ADP32071 is a high efficiency, multiphase, synchronous, buck-switching regulator controller optimized for converting notebook battery voltage into.

ADP3207 Features

* 1-, 2-, or 3-phase operation at up to 750 kHz per phase ±8 mV worst-case differential sensing error over temperature Interleaved PWM outputs for driving external high power MOSFET drivers Automatic power-saving modes maximize efficiency during light load and deeper sleep operation Soft transient con

ADP3207 Applications

* +
* SOFT START/ 32 PSI BOOT/ 10 DPRSLP DEEPER SLEEP 9 STSET CONTROL 28 DCM 27 8 +
* +
* +
* 1.7V RESET CMP
* CROWBAR 24 PWM3 CURRENT LIMIT 23 22 21 19 18 17 SW1 SW2 SW3 CSCOMP CSSUM CSREF 6 16 FB LLSET 33 DPRSTP OD SS ADP3207 www. DataSheet4

📥 Download Datasheet

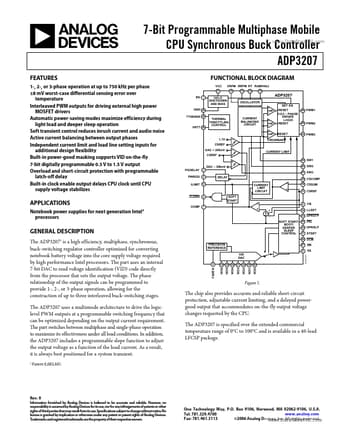

Preview of ADP3207 PDF
