ADP3208

Synchronous Buck Controller

ADP3208 Features

* Single-chip solution Fully compatible with the Intel® IMVP-6+™ specifications Integrated MOSFET drivers Selectable 1- or 2-phase operation with up to 1 MHz per phase switching frequency Guaranteed ±8 mV worst-case differentially sensed core voltage error over temperature Automatic power-saving mode

ADP3208 General Description

The ADP3208 is a highly efficient, multiphase, synchronous buck switching regulator controller. With its integrated drivers, the ADP3208 is optimized for converting the notebook battery voltage into the core supply voltage required by high performance Intel processors. An internal 7-bit DAC is used .

ADP3208 Datasheet (757.86 KB)

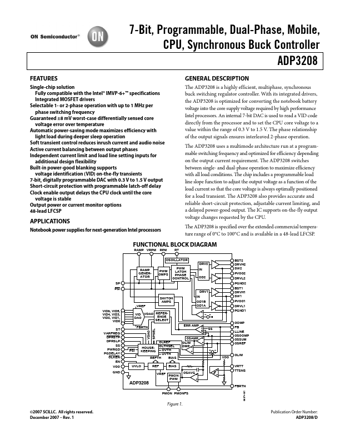

Preview of ADP3208 PDF

Datasheet Details

Part number:

ADP3208

Manufacturer:

ON Semiconductor ↗

File Size:

757.86 KB

Description:

Synchronous buck controller.
