ADP3208A

7-Bit Programmable Dual-Phase Mobile CPU Synchronous Buck Controller

ADP3208A Features

* Single-chip solution Fully compatible with the Intel® IMVP-6+™ specifications Integrated MOSFET drivers Selectable 1- or 2-phase operation with up to 1 MHz per phase switching frequency Guaranteed ±8 mV worst-case differentially sensed core voltage error over temperature Automatic power-saving mode

ADP3208A General Description

The ADP3208 is a highly efficient, multiphase, synchronous buck switching regulator controller. With its integrated drivers, the ADP3208 is optimized for converting the notebook battery voltage into the core supply voltage required by high performance Intel processors. An internal 7-bit DAC is used.

ADP3208A Datasheet (818.96 KB)

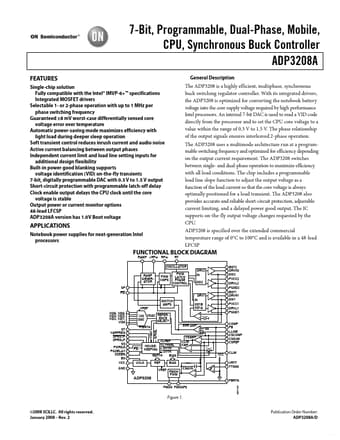

Preview of ADP3208A PDF

Datasheet Details

Part number:

ADP3208A

Manufacturer:

ON Semiconductor ↗

File Size:

818.96 KB

Description:

7-bit programmable dual-phase mobile cpu synchronous buck controller.
