ADP3206 Datasheet, controller equivalent, Analog Devices

ADP3206 Features

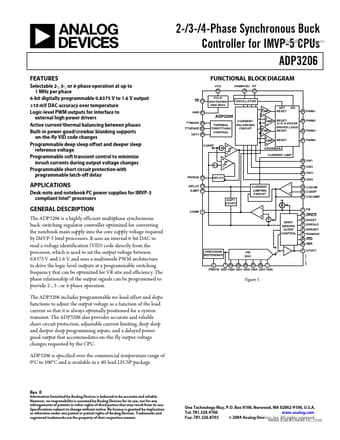

• Controller Selectable 2-, 3-, or 4-phase operation at up to 1 MHz per phase 6-bit digitally programmable 0.8375 V to 1.6 V output ±10 mV DAC accuracy over temperature Logic-level PWM outputs for i

PDF File Details

Part number:

ADP3206

Manufacturer:

Analog Devices ↗

File Size:

624.59kb

Download:

📄 Datasheet

Description:

2-/3-/4-phase synchronous buck controller. The ADP3206 is a highly efficient multiphase synchronous buck-switching regulator controller optimized for converting the notebook ma

ADP3206 Application

• Applications Desk-note and notebook PC power supplies for IMVP-5 compliant Intel® processors GENERAL DESCRIPTION The ADP3206 is a highly efficient
