APL3206 Li+ Charger Protector

APL3206 Description

APL3206/A/B Li+ Charger Protection IC with Integrated P-MOSFET .
The APL3206/A/B provides complete Li+ charger protection against input over-voltage, input over-current, and battery over-voltage.

APL3206 Features

* Input Over-Voltage Protection Input Over-Current Protection Battery Over-Voltage Protection High Immunity of False Triggering High Accuracy Protection Threshold A Built-In P-MOSFET Thermal Shutdown Protection Compliance

APL3206 Applications

* Available in a TDFN2x2-8 and TSOT-23-6A Packages Lead Free and Green Devices Available (RoHS Compliant) Applications
* Cell Phones Pin Configuration ACIN 1 8 OUT 7 OUT EP 6 CHRIN 5 GATDRV TDFN2x2-8 (Top View) EP Simplified Application Circuit 5V Adapter or USB ACIN

📥 Download Datasheet

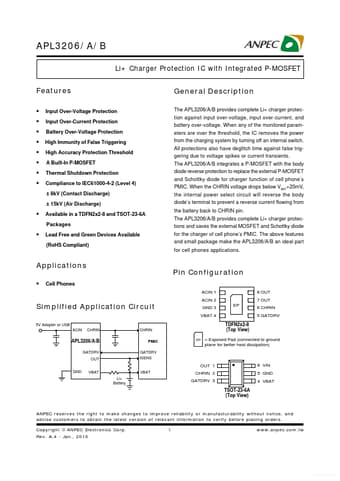

Preview of APL3206 PDF
