APL3215 Li+ Charger Protector

APL3215 Description

APL3215/A Li+ Charger Protection IC with Integrated P-MOSFET .
The APL3215/A provides complete Li+ charger protection against input over-voltage, input over-current, and battery over-voltage.

APL3215 Features

* Input Over-Voltage Protection Input Over-Current Protection Battery Over-Voltage Protection High Immunity of False Triggering High Accuracy Protection Threshold A Built-In P-MOSFET Thermal Shutdown Protection A

APL3215 Applications

* Applications
* Cell Phones Pin Configuration ACIN 1 ACIN 2 GND 3 VBAT 4 TDFN2x2-8 (Top View) EP Simplified Application Circuit 8 OUT 7 OUT 5V Adapter or USB ACIN CHRIN CHRIN PMIC GATDRV ISENS VBAT Li+ Battery EP 6 CHRIN 5 GATDRV APL3215/A GATDRV OUT GND VBAT = Exposed Pad (connected

📥 Download Datasheet

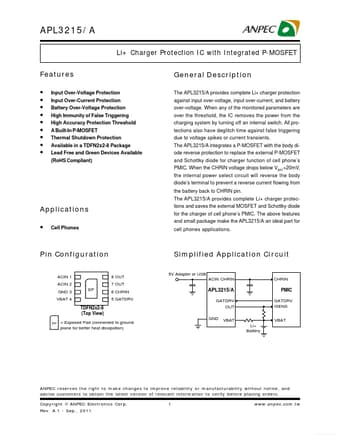

Preview of APL3215 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APL3215
Manufacturer
ANPEC
File Size
335.94 KB
Datasheet
APL3215_ANPEC.pdf
Description
Li+ Charger Protector
