APL3215A, APL3215 Li+ Charger Protector

APL3215A Description

APL3215/A Li+ Charger Protection IC with Integrated P-MOSFET .
The APL3215/A provides complete Li+ charger protection against input over-voltage, input over-current, and battery over-voltage.

APL3215A Features

* Input Over-Voltage Protection Input Over-Current Protection Battery Over-Voltage Protection High Immunity of False Triggering High Accuracy Protection Threshold A Built-In P-MOSFET Thermal Shutdown Protection A

APL3215A Applications

* Applications
* Cell Phones Pin Configuration ACIN 1 ACIN 2 GND 3 VBAT 4 TDFN2x2-8 (Top View) EP Simplified Application Circuit 8 OUT 7 OUT 5V Adapter or USB ACIN CHRIN CHRIN PMIC GATDRV ISENS VBAT Li+ Battery EP 6 CHRIN 5 GATDRV APL3215/A GATDRV OUT GND VBAT = Exposed Pad (connected

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: APL3215A, APL3215. Please refer to the document for exact specifications by model.

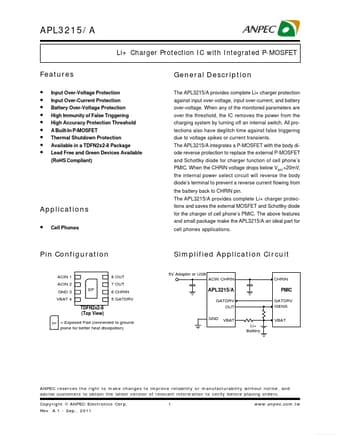

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APL3215A, APL3215
Manufacturer
ANPEC
File Size
335.94 KB
Datasheet
APL3215_ANPEC.pdf
Description
Li+ Charger Protector
Note
This datasheet PDF includes multiple part numbers: APL3215A, APL3215.
Please refer to the document for exact specifications by model.
