APL3512

Power-Distribution Switches

APL3512 Features

* 90mΩ High Side MOSFET 2A Continuous Current Soft-Start Time Programmable by External Capacitor Wide Supply Voltage Range: 2.7V to 5.5V Current-Limit and Short-Circuit Protections Under-Voltage Lockout

APL3512 General Description

The APL3512A/B is a power-distribution switch with some protection functions that can deliver current up to 2A. The device incorporates a 90mΩ N-channel MOSFET power switch that is controlled by an enable logic pin and has a SS pin dedicated to soft-start ramp-up rate control that can be used in app.

APL3512 Datasheet (349.07 KB)

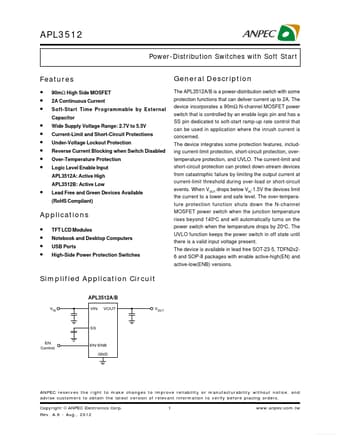

Preview of APL3512 PDF

Datasheet Details

Part number:

APL3512

Manufacturer:

ANPEC

File Size:

349.07 KB

Description:

Power-distribution switches.
