APL3514

Power-Distribution Switches

APL3514 Features

* 90mΩ High Side MOSFET 2A Continuous Current Bulit-In 2ms Soft Start Control Wide Supply Voltage Range: 2.7V to 5.5V Current-Limit and Short-Circuit Protections Under-Voltage Lockout Protection Reverse

APL3514 General Description

The APL3514A/B is a power-distribution switch with some protection functions that can deliver current up to 2A. The device incorporates a 90mΩ N-channel MOSFET power switch that is controlled by an enable logic pin and has internal soft start control to minimize inrush current. The device integrates.

APL3514 Datasheet (281.27 KB)

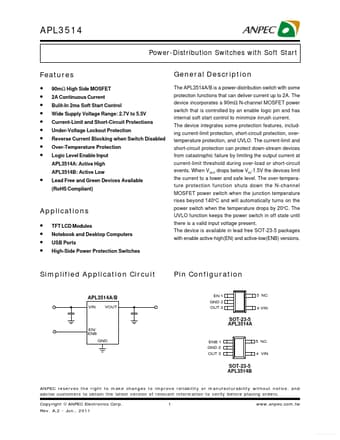

Preview of APL3514 PDF

Datasheet Details

Part number:

APL3514

Manufacturer:

ANPEC

File Size:

281.27 KB

Description:

Power-distribution switches.
