APW8820

System Power PWM Controller

APW8820 Features

* Built in 2 PWM Controller into single chip High Input Battery Voltage Range from 5.5V to 28V Fixed 1.0MHz Switching Frequency for Individual Channel B

APW8820 General Description

The APW8820 offers a compact power supply solution to provide 2 voltages required by notebook application. The 2 PWM controllers use current-mode scheme with phase shift 180 degrees control scheme allow to use MLCC output capacitors. The higher fixed 1MHz switching frequency allows to use thin and s.

APW8820 Datasheet (555.56 KB)

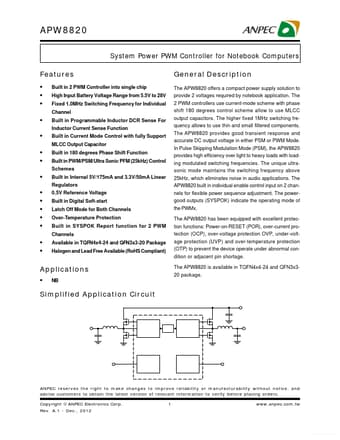

Preview of APW8820 PDF

Datasheet Details

Part number:

APW8820

Manufacturer:

ANPEC

File Size:

555.56 KB

Description:

System power pwm controller.
