APW8822

System Power PWM Controller

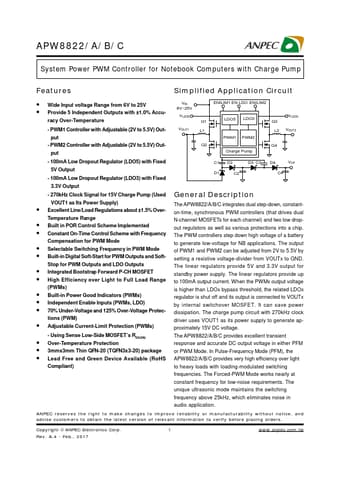

APW8822 Features

* Simplified Application Circuit

* Wide Input voltage Range from 6V to 25V

* Provide 5 Independent Outputs with ±1.0% Accu- racy Over-Temperature - PWM1 Controller with Adjustable (2V to 5.5V) Output - PWM2 Controller with Adjustable (2V to 5.5V) Output VIN 6V~25V VLDO5 VOUT1 ENILI

APW8822 General Description

VOUT1 as Its Power Supply) The APW8822/A/B/C integrates dual step-down, constant-

* Excellent Line/Load Regulations about ±1.5% Over- on-time, synchronous PWM controllers (that drives dual Temperature Range N-channel MOSFETs for each channel) and two low drop-

* Built in POR Co.
