APW8822E

System Power PWM Controller

APW8822E Features

* Simplified Application Circuit

* Wide Input voltage Range from 6V to 25V

* Provide 5 Independent Outputs with ±1.0% Accu- racy Over-Temperature - PWM1 Controller with Adjustable (2V to 5.5V) Output - PWM2 Controller with Adjustable (2V to 5.5V) Output - 100mA Low Dropout Regulato

APW8822E General Description

VOUT1 as Its Power Supply) The APW8822E integrates dual step-down, constant-on-

* Excellent Line/Load Regulations about ±1.5% Over- time, synchronous PWM controllers (that drives dual N- Temperature Range channel MOSFETs for each channel) and two low drop-

* Built in POR Contro.

APW8822E Datasheet (579.45 KB)

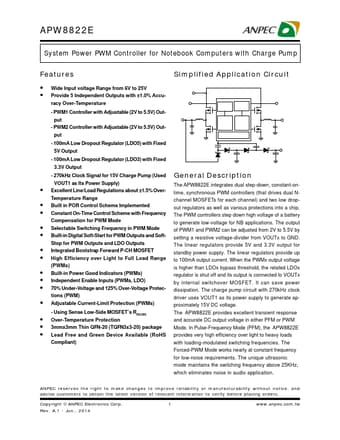

Preview of APW8822E PDF

Datasheet Details

Part number:

APW8822E

Manufacturer:

ANPEC

File Size:

579.45 KB

Description:

System power pwm controller.
