2N60

N-CHANNEL MOSFET

2N60 Features

* RDS(ON) = 3.8Ω@VGS = 10V.

* Ultra Low gate charge (typical 9.0nC)

* Low reverse transfer capacitance (Crss = typical 5.0 pF)

* Fast switching capability

* Avalanche energy specified

* Improved dv/dt capability, high ruggedness SYMBOL Pb-free plating product number: 2N60L

2N60 General Description

The 2N60 is a high voltage MOSFET and is designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and have a high rugged avalanche characteristics. This power MOSFET is usually used at high speed switching applications in power supplies, PWM moto.

2N60 Datasheet (380.82 KB)

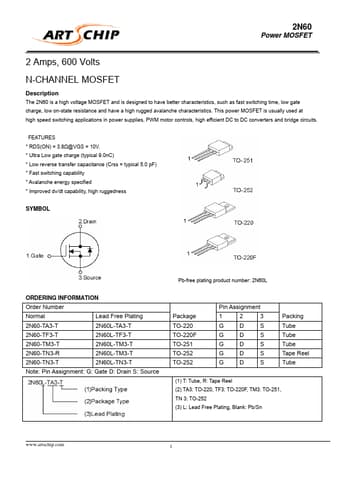

Preview of 2N60 PDF

Datasheet Details

Part number:

2N60

Manufacturer:

ART CHIP

File Size:

380.82 KB

Description:

N-channel mosfet.
