2N6027 - Programmable Unijunction Transistor

Datasheet Summary

Description

of TO 92 Tape Orientation 2N6027 2N6027G 2N6028 5000 Units / Box N/A Bulk 2N6028G 2N6027RLRA 2N6027RLRAG 2N6028RLRA 2N6027RL1 2N6027RL1G 2000 / Tape & Reel Round side of TO 92 and adhesive tape visible 2N6028RLRAG 2N6028RLRM 2N6028RLRMG 2N6028RLRP 2N6028RLRPG 2

Features

  • Programmable.
  • RBB, h, IV and IP.
  • Low On.
  • State Voltage.
  • 1.5 V Maximum @ IF = 50 mA.
  • Low Gate to Anode Leakage Current.
  • 10 nA Maximum.
  • High Peak Output Voltage.
  • 11 V Typical.
  • Low Offset Voltage.
  • 0.35 V Typical (RG = 10 kW).
  • Pb.
  • Free Packages are Available.
  • http://onsemi. com PUTs 40 VOLTS, 300 mW G A K 1 2 3 TO.
  • 92 (TO.
  • 226AA) CASE 029 STYLE 16.

📥 Download Datasheet

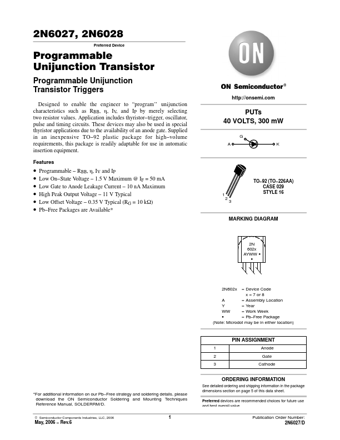

Datasheet preview – 2N6027
