Programmable unijunction transistor.

2N6028, Programmable Unijunction Transistor

of TO *92 Tape Orientation 2N6027 2N6027G 2N6028 5000 Units / Box N/A * Bulk 2N6028G 2N6027RLRA 2N6027RLRAG 2N6028RLRA 2N6027RL1 2N6027RL1G 2000 / Tape & Reel Round side of TO *92 and adhesive tape visible 2N6028RLRAG 2N6028RLRM 2N6028RLRMG 2N6028RLRP 2N6028RLRPG 2

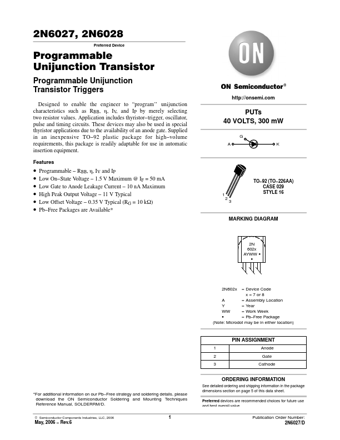

2N6027, 2N6028 Preferred Device Programmable Unijunction Transistor Programmable Unijunction Transistor Triggers Designed to enable the engineer to “program’’ unijunction characteristics such as RBB, h, IV, and IP by merely selecting two resistor values.

Application includes thyristor trigger, oscillator, pulse and timing circuits.

These devices may also be used in special thyristor applications due to the availability of an anode gate.

Supplied in an inexpensive TO 92 plastic pa

2N6028 Features

* Programmable

* RBB, h, IV and IP

* Low On

* State Voltage

* 1.5 V Maximum @ IF = 50 mA

* Low Gate to Anode Leakage Current

* 10 nA Maximum

* High Peak Output Voltage

* 11 V Typical

* Low Offset Voltage

* 0.35 V T
