IRF420 N-Channel Power MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

IRF420-423/IRF820-823 MTP2N45/2N50 N-Channel Power MOSFETs 3.0A, 450V/500V .
These devices are n-channel, enhancement mode, power MOSFETs designed especially for high speed applications, such as switching power supplies, conver.

📥 Download Datasheet

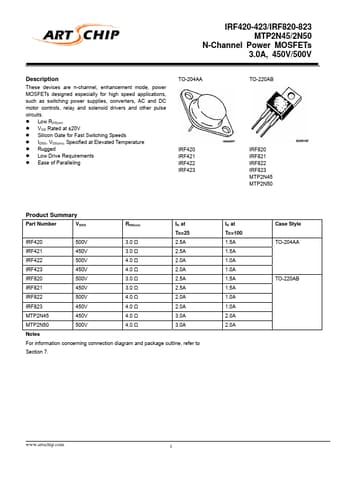

Preview of IRF420 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
IRF420
Manufacturer
ART CHIP
File Size
373.44 KB
Datasheet
IRF420-ARTCHIP.pdf
Description
N-Channel Power MOSFET

Applications

* such as switching power supplies, converters, AC and DC motor controls, relay and solenoid drivers and other pulse circuits. z Low RDS(on) z VGS Rated at ±20V z Silicon Gate for Fast Switching Speeds z IDSS, VDS(on), Specified at Elevated Temperature z Rugged z Low Drive Requirements z Ease of Para
