IPS101C-SO, IPS101 - Power Factor Correction Controller

IPS101C-SO Description

IN-PLUG® IPS101 Datasheet * Rev.10 - High Efficiency Power Factor Correction Controller IN-PLUG® series: IPS101 Low Cost, High Efficiency Powe.
The IN-PLUG® IPS101 is a special line-side switching controller which provides simple yet high performance active power factor correction.

IPS101C-SO Features

* Simple and easy to use.
* High efficiency over 96% (in optimized designs)
* Minimum external component count for lowest cost.
* 3-input current-mode multiplier ensures outstanding performance at any line voltage and any load.
* Under voltage protection.

IPS101C-SO Applications

* SMPS.
* Electronic ballast. PIN CONFIGURATION: DIP-8 / SOIC-8 VCC 1 8 VAC VDCFBK OPOUT IPS101 DRIVE ISENSE PKCAP 4 5 GND ORDERING INFORMATION Part No. ROHS / Package Temperature Range Pb-Free IPS101C-D -G-LF 8-Pin PDIP 0°C to +70°C IPS101I-D -G-LF 8-Pin PDIP -40°C to +8

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IPS101C-SO, IPS101. Please refer to the document for exact specifications by model.

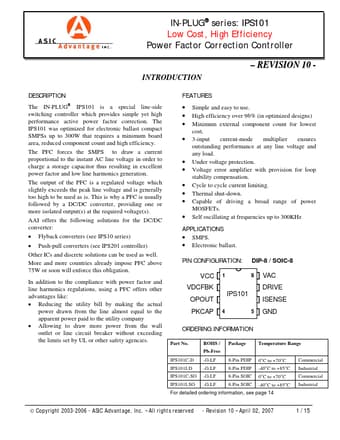

datasheet Preview Page 2 datasheet Preview Page 3
