IPS1011RPBF - INTELLIGENT POWER LOW SIDE SWITCH

Product Overview

International Rectifier

📥 Download Datasheet

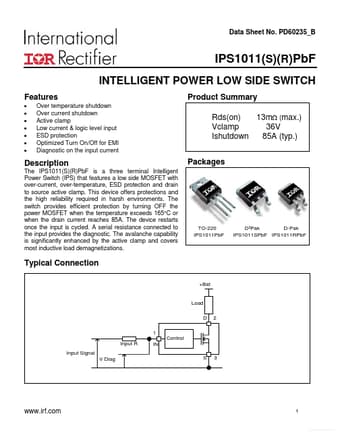

IPS1011RPBF INTELLIGENT POWER LOW SIDE SWITCH by International Rectifier - Datasheet Preview — Datasheet preview – IPS1011RPBF

Datasheet Details

Part number	IPS1011RPBF
Manufacturer	International Rectifier
File Size	708.24 KB
Description	INTELLIGENT POWER LOW SIDE SWITCH
Datasheet	IPS1011RPBF Datasheet
Note	This datasheet PDF includes multiple part numbers: IPS1011RPBF, IPS1011PBF. Please refer to the document for exact specifications by model.
Additional preview pages of the IPS1011RPBF datasheet.

Product details

Description

The IPS1011(S)(R)PbF is a three terminal Intelligent Power Switch (IPS) that

Features

Over temperature shutdown Over current shutdown Active clamp Low current & logic level input ESD protection Optimized Turn On/Off for EMI Diagnostic on the input current Product Summary Rds(on) 13mΩ (max. ) Vclamp 36V Ishutdown 85A (typ. ) Packages.
