IPS1011PBF - INTELLIGENT POWER LOW SIDE SWITCH

Product Overview

International Rectifier

📥 Download Datasheet

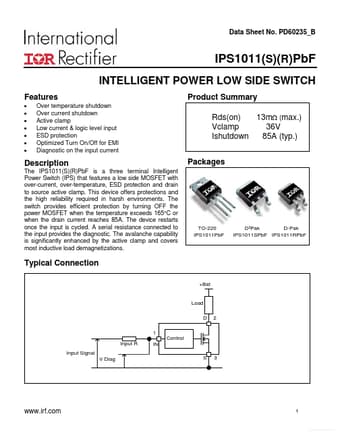

IPS1011PBF INTELLIGENT POWER LOW SIDE SWITCH by International Rectifier - Datasheet Preview — Datasheet preview – IPS1011PBF

Datasheet Details

Part number	IPS1011PBF
Manufacturer	International Rectifier
File Size	708.24 KB
Description	INTELLIGENT POWER LOW SIDE SWITCH
Datasheet	IPS1011PBF Datasheet
Additional preview pages of the IPS1011PBF datasheet.

Product details

Description

The IPS1011(S)(R)PbF is a three terminal Intelligent Power Switch (IPS) that

Features

Over temperature shutdown Over current shutdown Active clamp Low current & logic level input ESD protection Optimized Turn On/Off for EMI Diagnostic on the input current Product Summary Rds(on) 13mΩ (max. ) Vclamp 36V Ishutdown 85A (typ. ) Packages.
