AS3844, AS3842 Datasheet - ASTEC

AS3844, AS3842, Current Mode Controller

SEMICONDUCTOR AS384x Current Mode Controller .
The AS3842 family of control ICs provide pin-for-pin replacement of the industry standard UC3842 series of devices.

AS3842-ASTEC.pdf

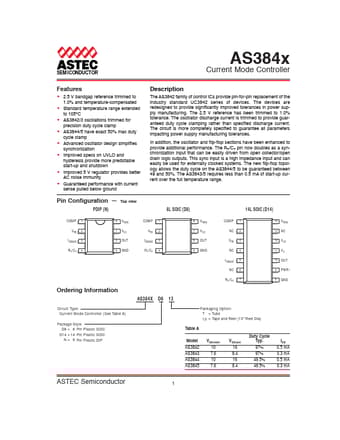

AS3844 Datasheet Preview — This datasheet PDF includes multiple part numbers: AS3844, AS3842. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AS3844, AS3842

Manufacturer:

ASTEC

File Size:

155.06 KB

Description:

Current Mode Controller

Note:

This datasheet PDF includes multiple part numbers: AS3844, AS3842.
Please refer to the document for exact specifications by model.

Features

* 2.5 V bandgap reference trimmed to 1.0% and temperature-compensated
* Standard temperature range extended to 105¡C
* AS3842/3 oscillations trimmed for precision duty cycle clamp
* AS3844/5 have exact 50% max duty cycle clamp
* Advanced oscillator design simplifies synchronizati
