AT24C1024 - Two-wire Serial EEPROM

Product Overview

ATMEL Corporation

Datasheet Details

Part number	AT24C1024
Manufacturer	ATMEL Corporation
File Size	419.83 KB
Description	Two-wire Serial EEPROM
Datasheet	AT24C1024 Datasheet

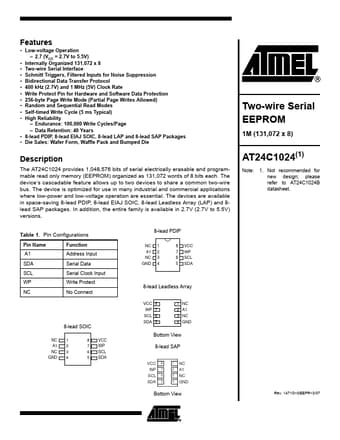

Additional preview pages of the AT24C1024 datasheet.

Product details

Description

The AT24C1024 provides 1,048,576 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 131,072 words of 8 bits each.

Features

Low-voltage Operation.
2.7 (VCC = 2.7V to 5.5V).
Internally Organized 131,072 x 8.
Two-wire Serial Interface.
Schmitt Triggers, Filtered Inputs for Noise Suppression.
Bidirectional Data Transfer Protocol.
400 kHz (2.7V) and 1 MHz (5V) Clock Rate.
Write Protect Pin for Hardware and Software Data Protection.
256-byte Page Write Mode (Partial Page Writes Allowed).
Random and Sequential Read Modes.
Se.
