AT24C16C - I2C-Compatible (2-Wire) Serial EEPROM

Product Overview

Microchip

Datasheet Details

Part number	AT24C16C
Manufacturer	Microchip
File Size	638.61 KB
Description	I2C-Compatible (2-Wire) Serial EEPROM
Datasheet	AT24C16C Datasheet

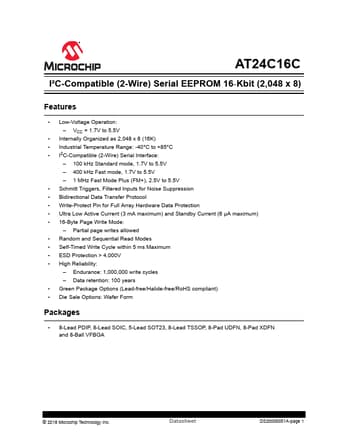

Additional preview pages of the AT24C16C datasheet.

Product details

Description

5 2.1. Ground 5 2.2. Serial Data (SDA)5 2.3. Serial Clock (SCL)5 2.4. Write-Protect (WP) 5 2.5. Device Power Supply 6 3. Description7 3.1. System Configuration Using 2-Wire Serial EEPROMs7 3.2. Block Diagram 8 4. Electrical Characteristics 9 4.1. Absolute Maximum Ratings9 4.2. DC and AC Operating Range9 4.3. DC Characteristics 9 4.4. AC Characteristics10 4.5. Electrical Specifications11 5. Device Operation and Communication13 5.1. Clock and Data Transition Requirements13 5.2. Start and Stop Cond

Features

Low-Voltage Operation:.
VCC = 1.7V to 5.5V.
Internally Organized as 2,048 x 8 (16K).
Industrial Temperature Range: -40°C to +85°C.
I2C-Compatible (2-Wire) Serial Interface:.
100 kHz Standard mode, 1.7V to 5.5V.
400 kHz Fast mode, 1.7V to 5.5V.
1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V.
Schmitt Triggers, Filtered Inputs for Noise Suppression.
Bidirectional Data Transfer Protocol.
Write-Protect Pin f.
