AT24C16B - Two-wire Serial EEPROM

Product Overview

ATMEL Corporation

📥 Download Datasheet

AT24C16B Two-wire Serial EEPROM by ATMEL Corporation - Datasheet Preview — Datasheet preview – AT24C16B

Datasheet Details

Part number	AT24C16B
Manufacturer	ATMEL Corporation
File Size	438.05 KB
Description	Two-wire Serial EEPROM
Datasheet	AT24C16B Datasheet

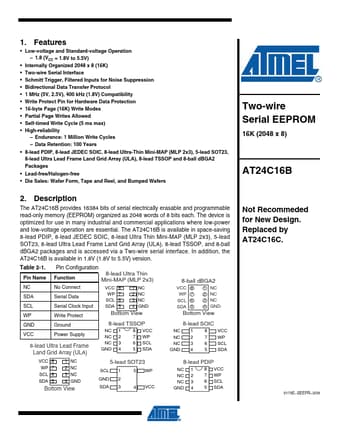

Additional preview pages of the AT24C16B datasheet.

Product details

Description

The AT24C16B provides 16384 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as

Features

Low-voltage and Standard-voltage Operation.
1.8 (VCC = 1.8V to 5.5V).
Internally Organized 2048 x 8 (16K).
Two-wire Serial Interface.
Schmitt Trigger, Filtered Inputs for Noise Suppression.
Bidirectional Data Transfer Protocol.
1 MHz (5V, 2.5V), 400 kHz (1.8V) Compatibility.
Write Protect Pin for Hardware Data Protection.
16-byte Page (16K) Write Modes.
Partial Page Writes Allowed.
Self-timed Writ.
