AT24C16 Datasheet - ATMEL Corporation

2-Wire Automotive Serial EEPROM

AT24C16 Features

* Medium-voltage and Standard-voltage Operation

* 5.0 (VCC = 4.5V to 5.5V)

* 2.7 (VCC = 2.7V to 5.5V)

* Internally Organized 128 x 8 (1K), 256 x 8 (2K), 512 x 8 (4K), 1024 x 8 (8K) or 2048 x 8 (16K)

* Two-wire Serial Interface

* Schmitt Trigger, Filter

AT24C16 General Description

The AT24C01A/02/04/08/16 provides 1024/2048/4096/8192/16384 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 128/256/512/1024/2048 words of 8 bits each. The device is optimized for use in many automotive applications where low-power and low-voltage operati.

AT24C16 Datasheet (294.63 KB)

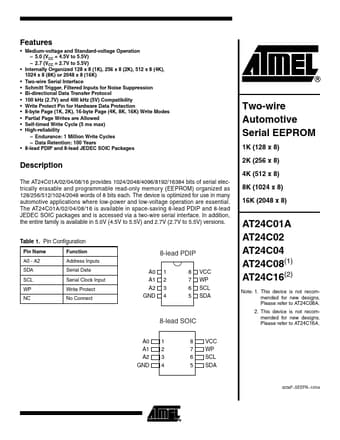

AT24C16 Datasheet Preview — Preview of AT24C16 PDF

Datasheet Details

Part number:

AT24C16

Manufacturer:

ATMEL Corporation

File Size:

294.63 KB

Description:

2-wire automotive serial eeprom.
