AT24C1024B - Two-wire Serial EEPROM

AT24C1024B Description

.
The AT24C1024B provides 1,048,576 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 131,072 words of 8 bits.

AT24C1024B Features

* Low-voltage Operation
* 1.8V (VCC = 1.8V to 3.6V)
* 2.5V (VCC = 2.5V to 5.5V)
* Internally Organized 131,072 x 8
* Two-wire Serial Interface
* Schmitt Triggers, Filtered Inputs for Noise Suppression
* Bidirectional Data Transfer Protocol

AT24C1024B Applications

* where low-power and low-voltage operation are essential. The devices are available in space-saving 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead TSSOP, 8-ball dBGA2 and 8-lead Ultra Thin SAP packages. In addition, the entire family is available in 1.8V (1.8V to 3.6V) and 2.5V (2.5V to 5.5

📥 Download Datasheet

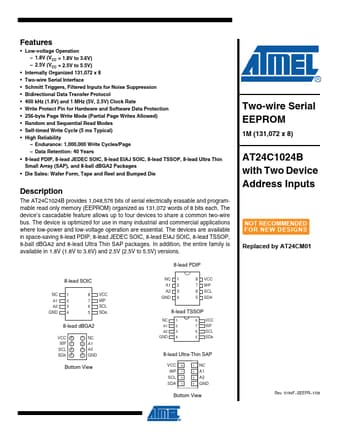

Preview of AT24C1024B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AT24C1024B
Manufacturer
ATMEL Corporation
File Size
833.99 KB
Datasheet
AT24C1024B_ATMELCorporation.pdf
Description
Two-wire Serial EEPROM
