AT25P1024, SPI Serial EEPROMs

.
The AT25P1024 provides 1,048,576 bits of serial electrically erasable programmable read only memory (EEPROM) organized as 131,072 words of 8 bits each.

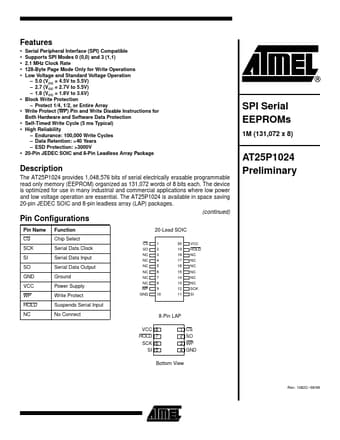

datasheet Preview Page 1 from Datasheet4u.com

AT25P1024_ATMELCorporation.pdf

AT25P1024 Datasheet Preview — Preview of AT25P1024 PDF

Datasheet Details

Part number:

AT25P1024

Manufacturer:

ATMEL Corporation

File Size:

129.13 KB

Description:

SPI Serial EEPROMs

Features

* Serial Peripheral Interface (SPI) Compatible Supports SPI Modes 0 (0,0) and 3 (1,1) 2.1 MHz Clock Rate 128-Byte Page Mode Only for Write Operations Low Voltage and Standard Voltage Operation
* 5.0 (VCC = 4.5V to 5.5V)
* 2.7 (VCC = 2.7

Applications

* where low power and low voltage operation are essential. The AT25P1024 is available in space saving 20-pin JEDEC SOIC and 8-pin leadless array (LAP) packages. AT25P1024 Preliminary (continued) Pin Configurations Pin Name CS SCK SI SO GND VCC WP HOLD NC Function Chip Select Serial Data Clock Seria
