AT26F004

Serial Firmware DataFlash Memory

AT26F004 Features

* Single 2.7V - 3.6V Supply

* Serial Peripheral Interface (SPI) Compatible

* Supports SPI Modes 0 and 3

* 33 MHz Maximum Clock Frequency

* Flexible, Uniform Erase Architecture

* 4-Kbyte Blocks

* 32-Kbyte Blocks

* 64-Kbyte Blocks

AT26F004 General Description

The AT26F004 is a serial interface Flash memory device designed for use in a wide variety of high-volume consumer based applications in which program code is shadowed from Flash memory into embedded or external RAM for execution. The flexible erase architecture of the AT26F004, with its erase granul.

AT26F004 Datasheet (633.08 KB)

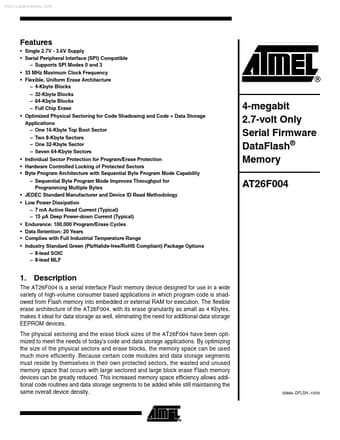

Preview of AT26F004 PDF

Datasheet Details

Part number:

AT26F004

Manufacturer:

ATMEL Corporation

File Size:

633.08 KB

Description:

Serial firmware dataflash memory.
