AT26LS32

Quad High Speed Differential Line Reciver

AT26LS32 Features

* » Operating Temperature range of +125°C to -55°C » High differential or common-mode input voltage ranges of ±7V on the AT26LS32 » ±0.2V sensitivity over the input voltage range » Meets all requirements of RS-422 » 6k minimum input impedance » 100 mV input hysteresis » Operation from a single 5V supp

AT26LS32 General Description

The AT26LS32 is a quad differential line receivers designed to meet the RS-422 requirements for balanced and unbalanced digital data transmission. The AT26LS32 has an input sensitivity of 200 mV over the input voltage range of ±7V. The AT26LS32 has an enable and disable function common to all four r.

AT26LS32 Datasheet (182.72 KB)

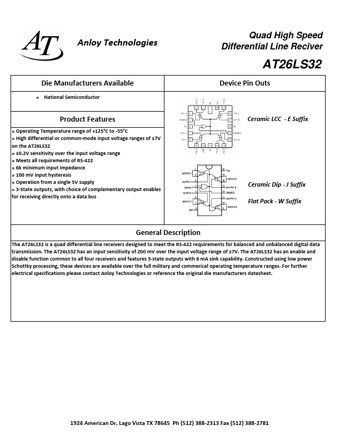

Preview of AT26LS32 PDF

Datasheet Details

Part number:

AT26LS32

Manufacturer:

Anloy Technologies

File Size:

182.72 KB

Description:

Quad high speed differential line reciver.
